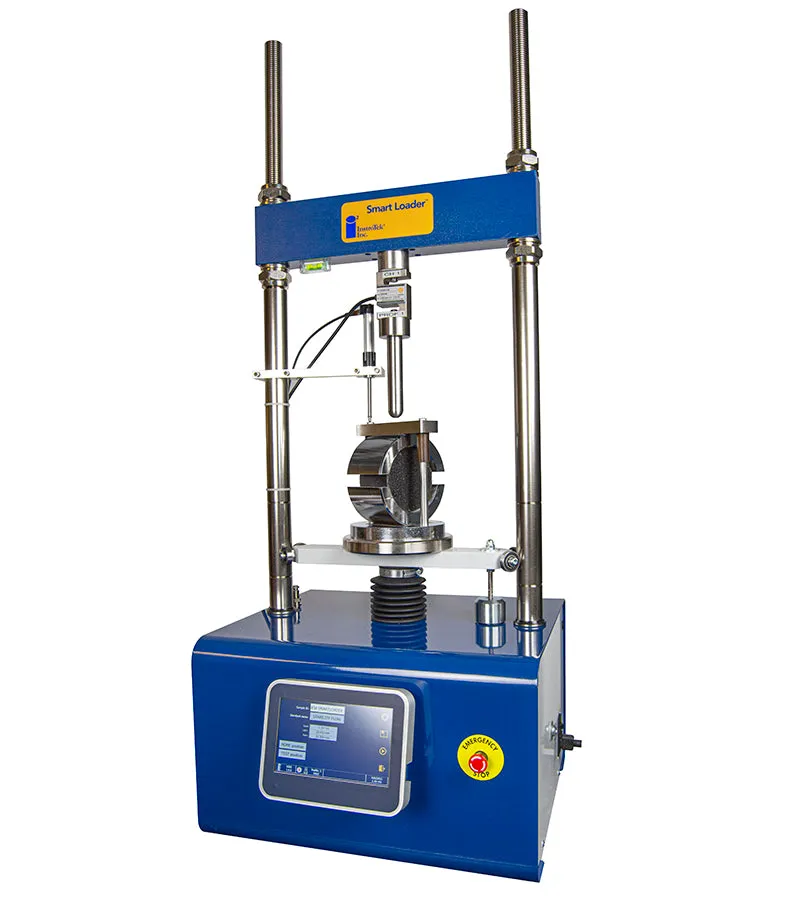

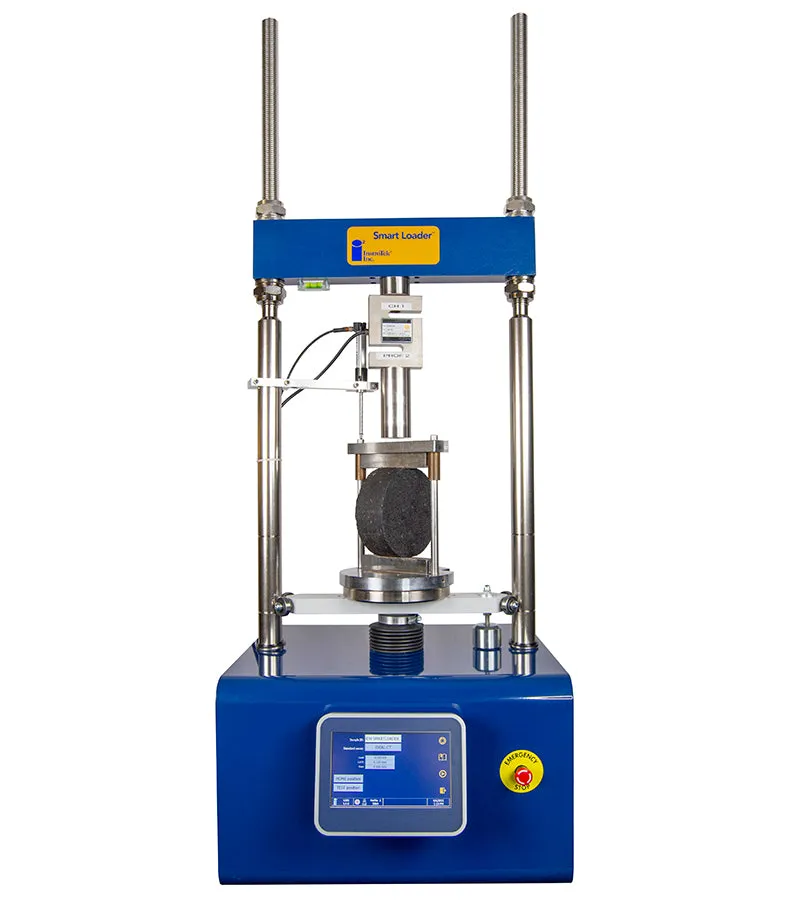

SmartLoader Universal Load Frame
- Ready to perform IDEAL-CT, TSR and Marshall Tests
- Load Up the SmartLoader Spec Sheet, click
- Delivered with calibrated 50kN Load Cell
- Includes calibrated 25mm LVDT & holder
- Automatic Load & Displacement Control
- Control Seating Load 100N /- 10 N
- User-programmable and adjustable speed
- Adjustable Pace Rate from 1 to 15000 N/min
- Load Frame Dimensions - 20" W x 22" D x 66" H (500 x 550 x 1675mm)
- See all of our Balanced Mix Design (BMD) equipment
- Already have a load frame? Check out our Smart Jigs
- 294.3300
