| Technical Specification |
| Wattage | 28.8W/Meter | Voltage | 12V DC |
| Beam Angle | 120° | Dimming | Yes |
| LED Type | SMD5050 | Strip Section | 6LED per 2inch |
| WxH | 15x2(mm) | LED QTY.: | 120LED/Meter |
| Length Available | 0.5 to 5 Meter | Available Color | RGB color |
| Protection Grade | Non-waterproof, IP65, IP67 | PCB Background | White |
| Other Features |

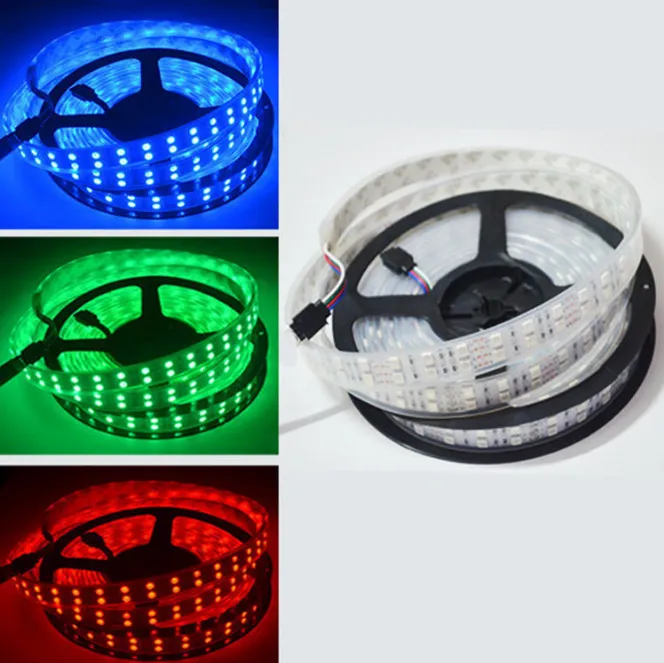

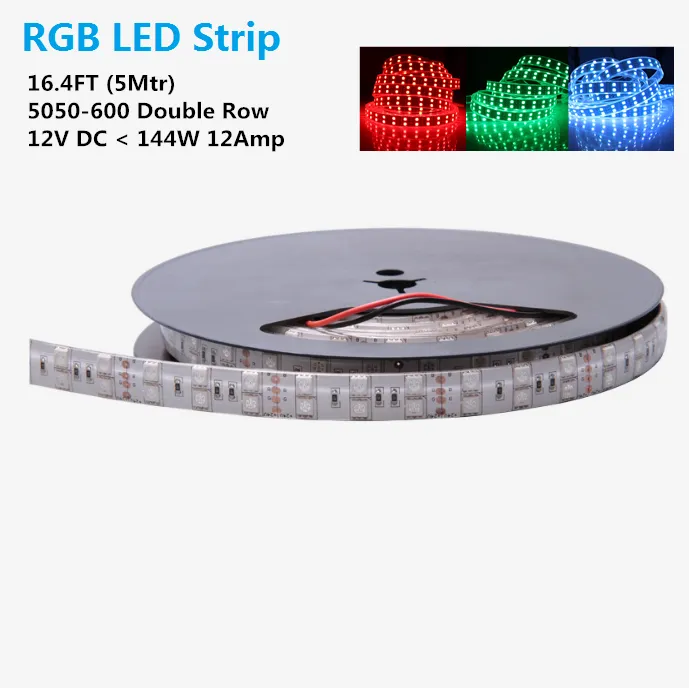

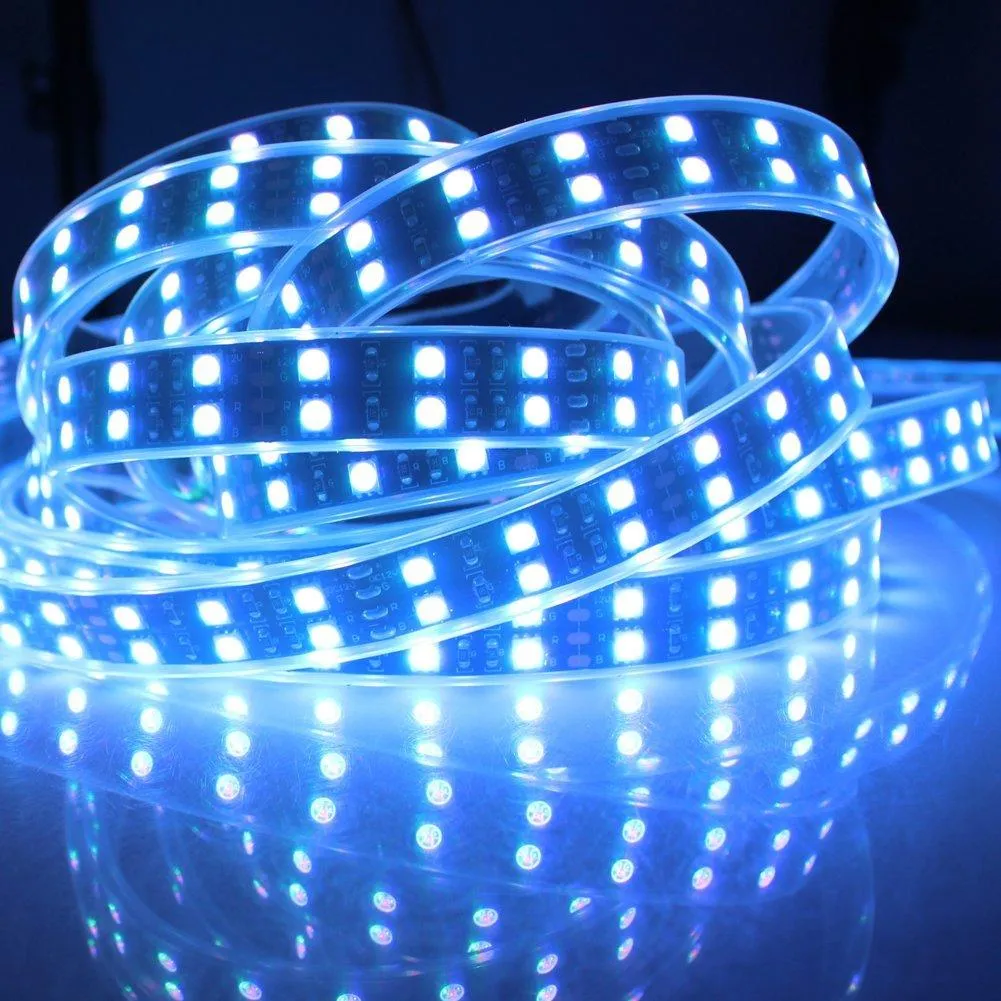

| Item | DC12V SMD5050-600 Tri-Chip Double Row Flexible LED Strips 120LEDs 28.8W Per Meter |
| Weight | 0.35kgs/roll for non-waterproof; 0.5kgs/roll for IP65/IP67 |

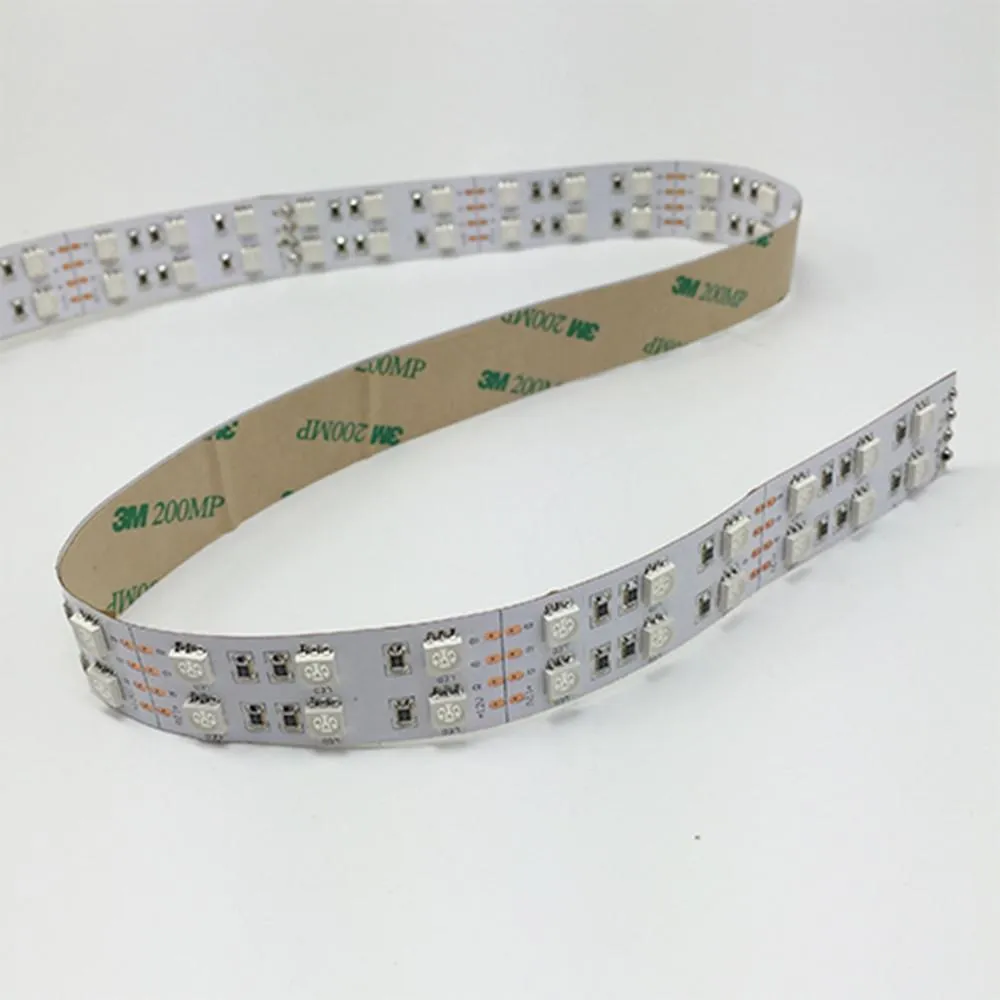

| PCB Backing | Adhesive backing for Non-waterproof and waterproof IP65/IP67 |
| Lead Wire | RGB color strip has 4 contacts(V ,R-, G-, B-) and is Polarity Sensitive. |
| Pre-wiring | 20cm(8'') RGBBlack lead wire is pre-soldered at one end of the strip |
Package included:
• 1x 5meter per roll LED Flexible Strip
Applications:
• Widely used for home, hotels, clubs, shopping malls
• Architectural decorative lighting, boutique atmosphere lighting
• Extensively applied in backlighting, concealed lighting, advertisement lighting box edge lighting
• Emergency & security lighting, advertisement sign lighting
• Holiday, event, show exhibition decoration
• Auditorium walk stairway lighting, Hidden groove, Wine cabinet Decor
• Amusement park, theater and aircraft cabin mood lighting
• Applicable for automobile, boat and bicycle decoration
Waterproof Strip Dimension
*Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use.
*Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction.

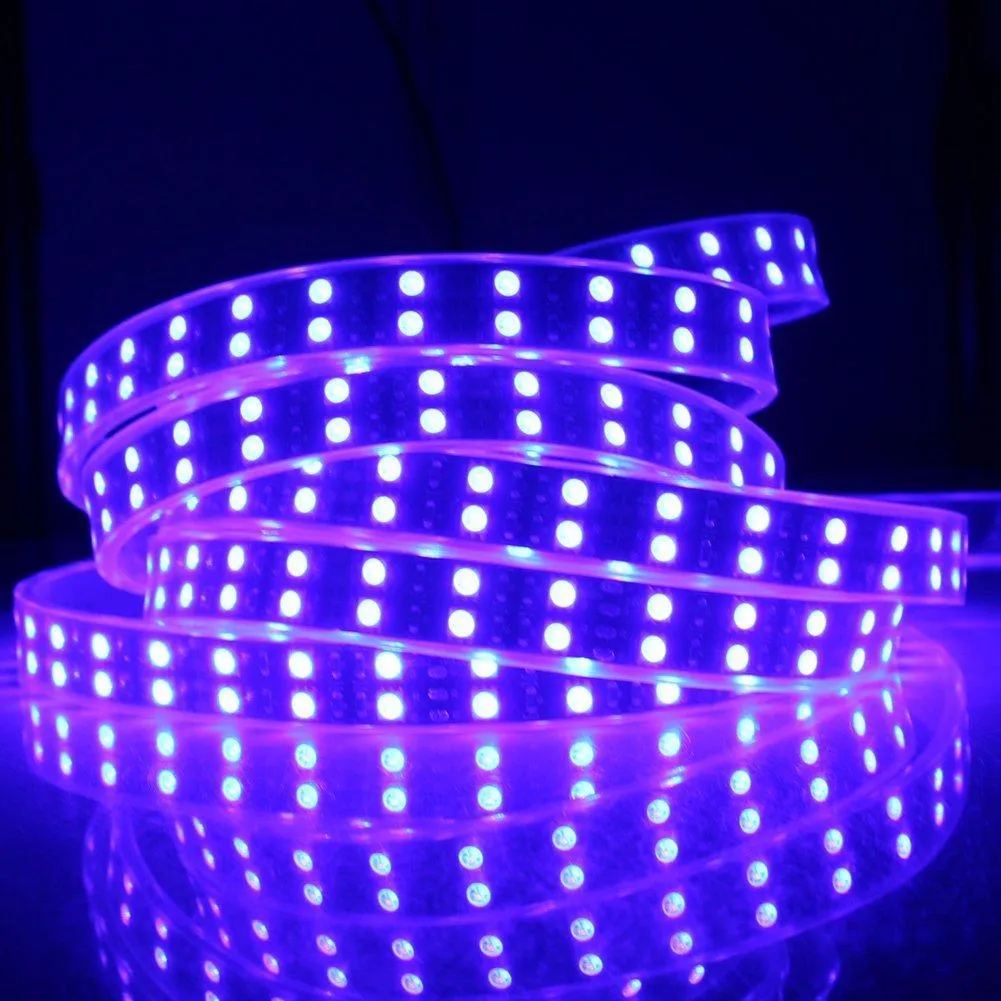

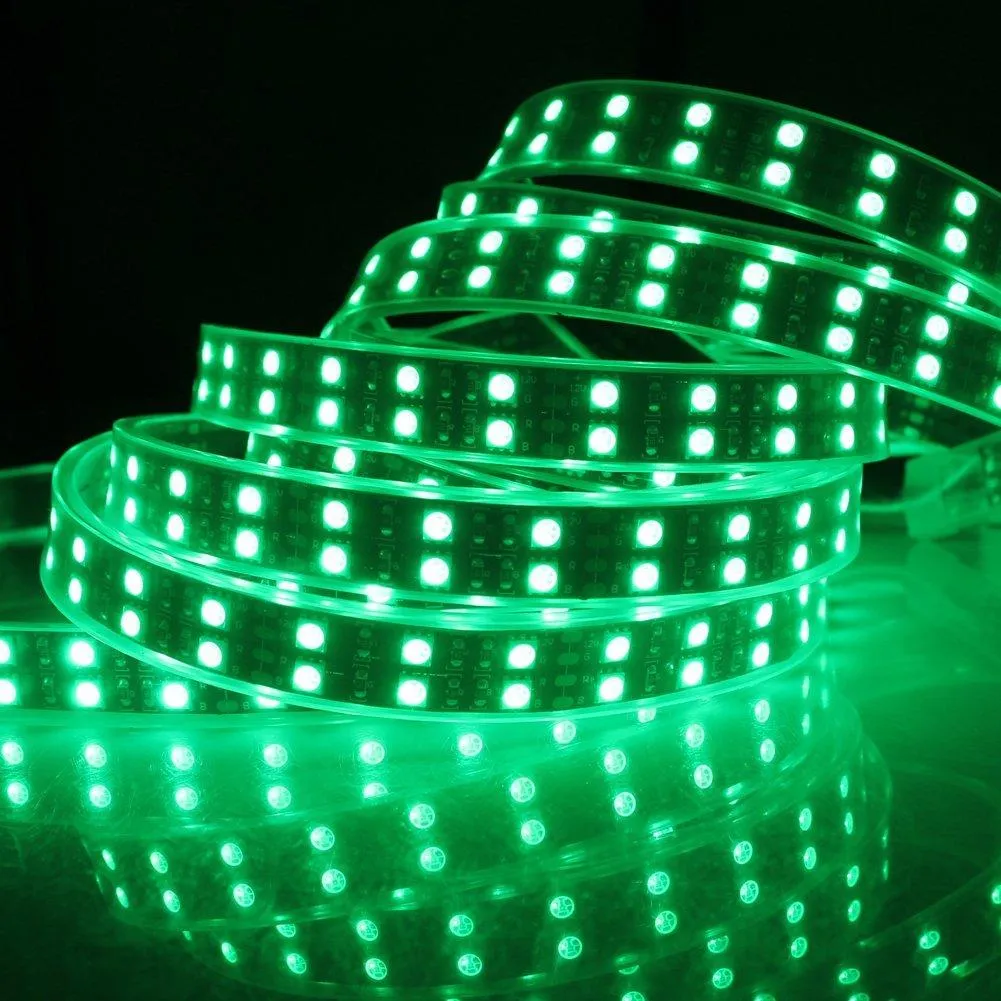

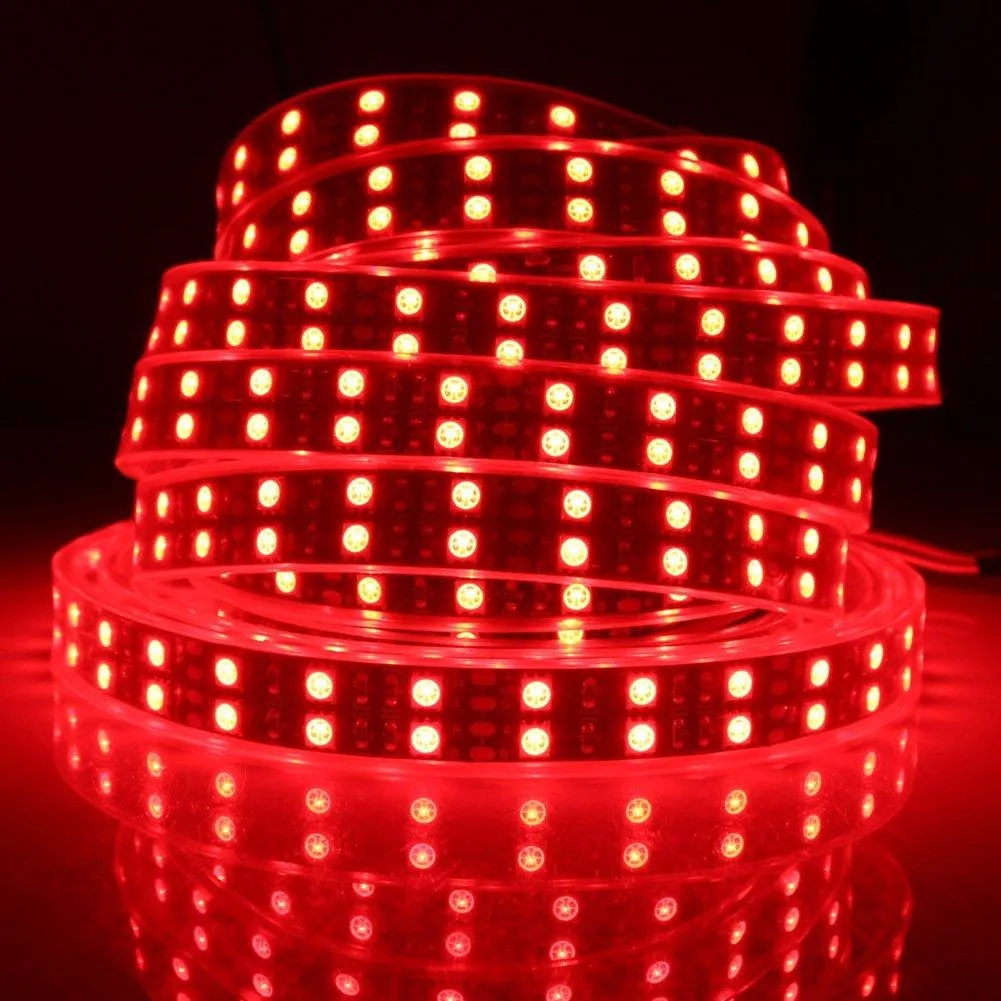

*Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.
*Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it's solid.IP68 grade can be used under water.
